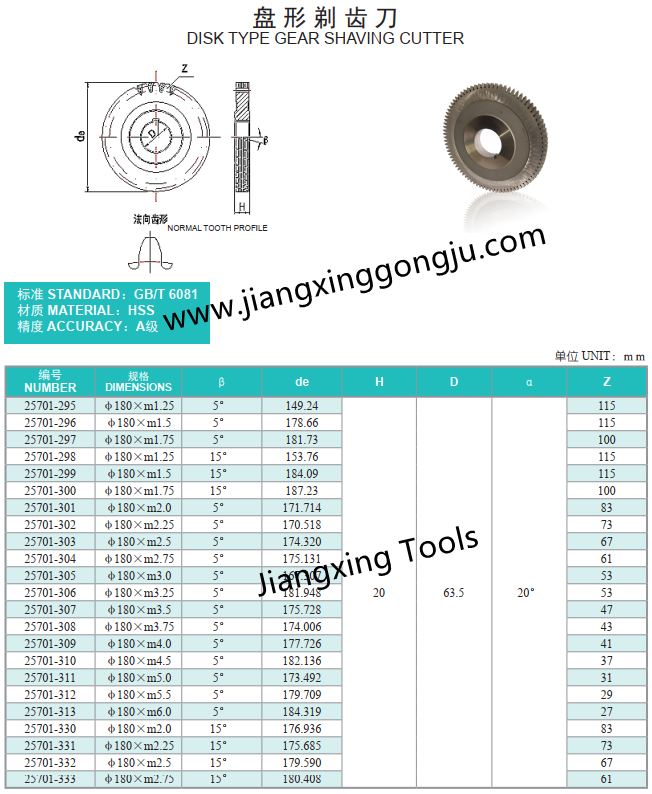

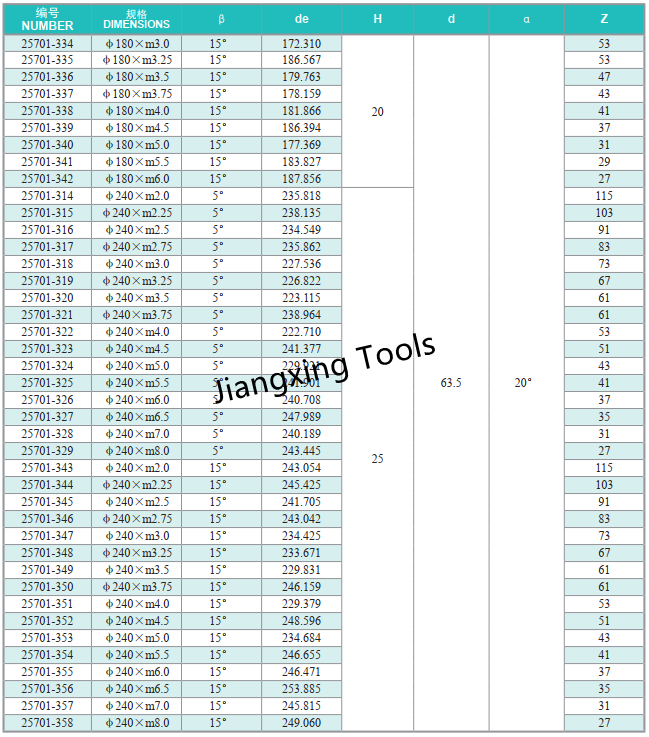

GB Standard Disk Type Module Gear Shaving Cutter
Standard: GB/T6081standard profile
Module: m1-m8, PA20, Material: HSS M2,Accuracy: Class A
Notes: please note the order left shaving cutter, product number plus prefix 25702.
Our conventional shaving cutters are made with vast experience, machine uniquely built to make high precision tools with long tool-life.
