Shank Type Worm Wheel Hob with Module m2
2022-06-07 09:56:02
jiangxingTools
2130
Shank Type Worm Wheel Hob with Module m2
Material: Powder Metal Steels (PM) and High-Speed-Steels (HSS)
Pitch circle dia. 26mm
Working length 45mm
Overall length 390mm
More taper: morse no. 4
quality: class A to DIN3968
Module m2, with pressre angle: PA20°
相關(guān)文章
-

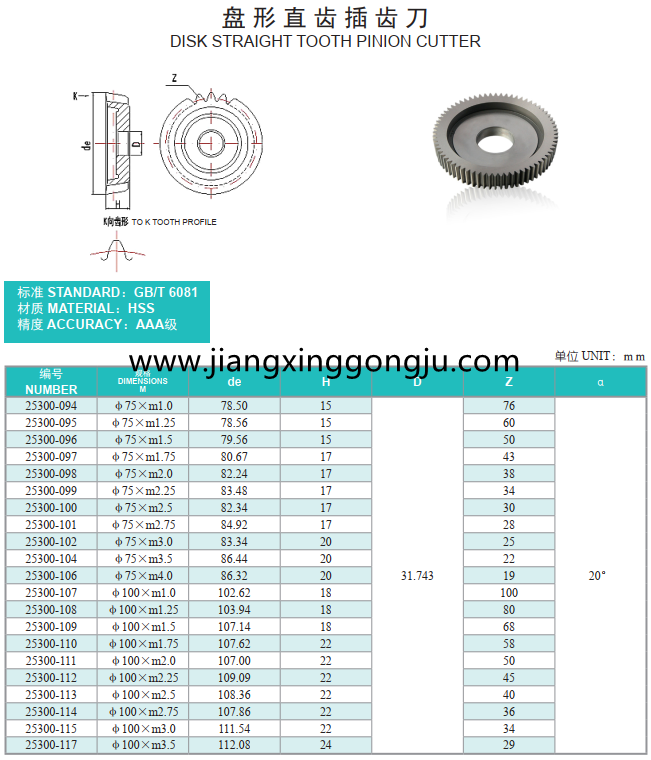

GB STD Disk Type Straight Tooth Gear Shaper Cutter
