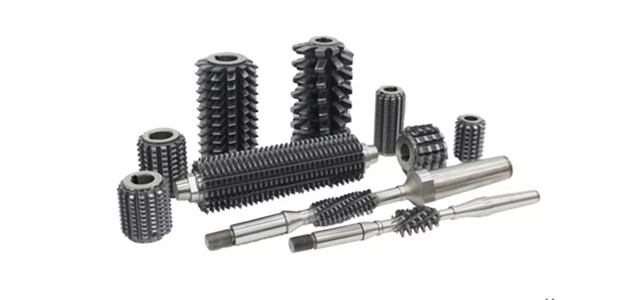

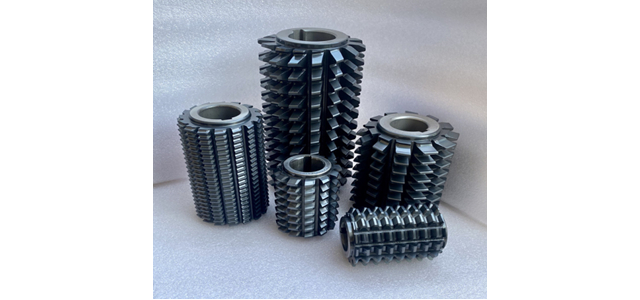

Gear Tools Involute Hob Cutter

Module: M0.5-M22, DP50.8-DP1, single/multi starts, Straight/ helix angle for any kind of hobs, and suitable for dry and wet cutting.

Hob Types: Bore & Shank type; Special Features such as Topping, Semi-Topping, Pre- Grinding, Pre- Shaving can also be provided.

Basic tooth profile is according to GB, DIN3972 standard, normally, gear hob for finishing cut is DIN3972-2

Hob diameter: OD15-290mm, Accuracy Class: A/ AA/ AAA as per DIN 3968

Material: HSS M2, M35, M42, ASP2052, S390, MC90, and Carbide

PVD Coatings: TiN, AP, and AT

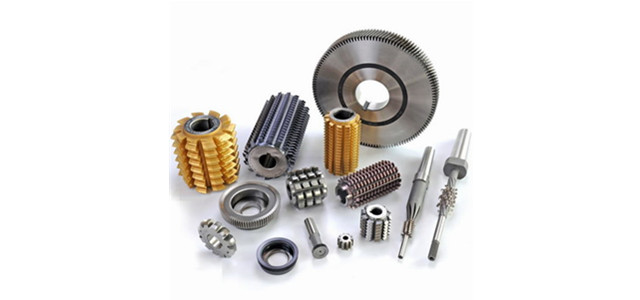

Jiangxing Tools is specialized in manufacturing a wide variety of gear hobs including:  Solid involute gear hobs from mod 0.5 -mod. 22 mm, Spline gear hobs (parallel or involute such ASA), Roller chain sprocket hobs, Worm wheel hobs, shank type or bore type, Timing pulley hobs, HM Hobs and Carbide hobs.

Non-standard special module gear hobs also can be designed and made according to specific gear data or workpiece drawings,
